2009-2016 2.0L Volkswagen Tiguan – Upstream Oxygen (O2)… — Transcript

Step-by-step guide to replacing the upstream O2 sensor on a 2014 Volkswagen Tiguan 2.0L TSI engine.

Key Takeaways

Removing the intake line simplifies access to the upstream O2 sensor.
Proper tools like a T30 driver and O2 sensor socket or wrench are essential.
Handle vacuum clips carefully to avoid breakage.
The upstream O2 sensor has a protective coating requiring specific sockets or wrenches.
Reassembly is the reverse of removal, ensuring all connectors and clips are securely fastened.

Summary

Introduction to replacing the upstream O2 sensor on a 2014 Volkswagen Tiguan with a 2.0 TSI motor.
Locate the upstream O2 sensor connector behind the intake line.
Remove the intake line by loosening the T30 bolt and disconnecting vacuum clips for easier access.
Disconnect the electrical connector of the O2 sensor by opening clips.
Use an O2 sensor socket or 20-22mm wrench to loosen and remove the sensor, noting the protective coating.
Install the new O2 sensor by hand tightening and then snugging it securely.
Reconnect the electrical connector and lock it in place.
Reinstall the air intake line and vacuum lines, ensuring all clips and bolts are secured.
Final check and summary of the replacement process.
Encouragement to viewers to perform the repair themselves with proper guidance.

Chapters

Full Transcript — Download SRT & Markdown

Speaker A

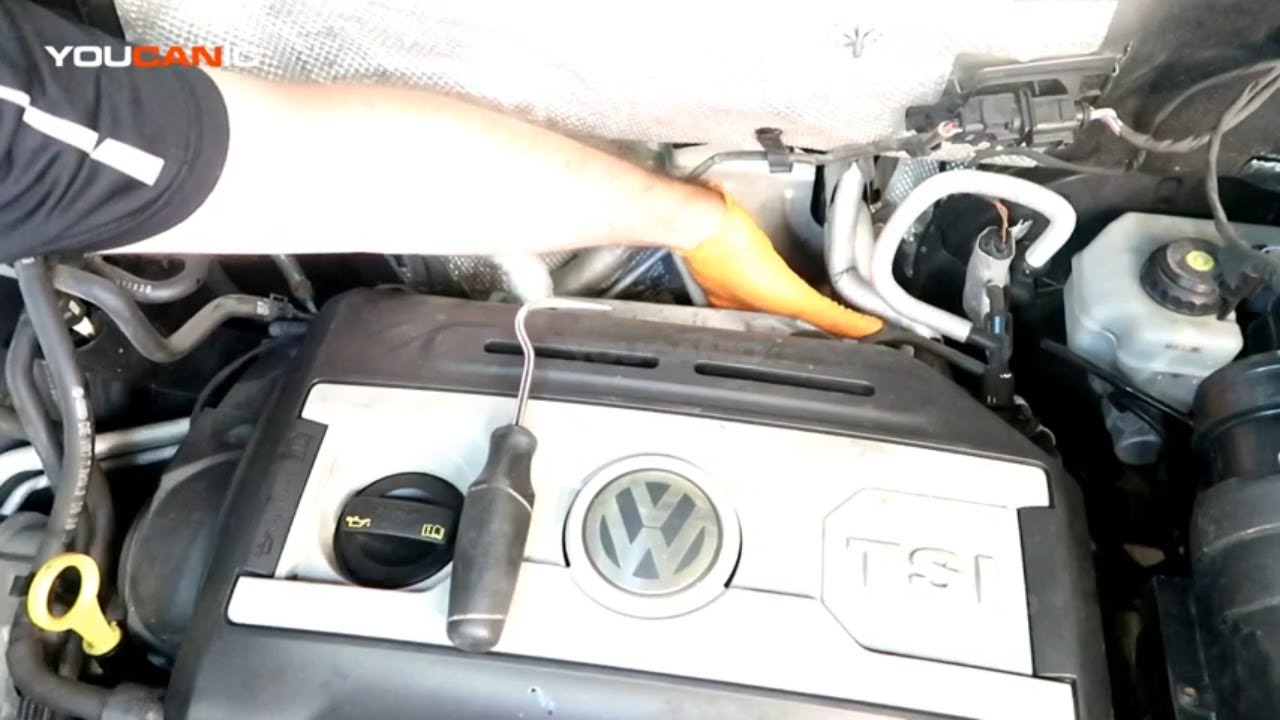

[Music] Welcome to Ucanic. Today here in Mechanic, we have a 2014 Volkswagen Tiguan. On this Volkswagen Tiguan, we're going to go over how you would replace your upstream O2 sensor. The upstream O2 sensor connector is right here, runs down, and it's right down here behind here. So to make it real easy, you could probably easily get it out without removing this, but to make it real easy, we're going to remove this intake line that goes into the engine.

Speaker A

And on the back of this intake line is that little vacuum line that we'll need to squeeze the clips and remove. So to remove this line, first we'll need a T30. There's a little bracket down here that we'll need to remove, or just the bolt. We'll need a T30 to remove that bolt, and then squeeze these clips together and be able to remove this to give us easier access.

Speaker A

All right, so we're moving that bolt that's holding this air intake tube on. You can either disconnect it here, disconnect it here. I'm just going to disconnect it from the air box one, and then we have another one down here, and then when you pull that one up, we

Speaker A

have this air, this little vacuum line. We'll need to squeeze these clips together. There we go, we got that undone. These same, they can be pretty good, a pair of bear, but you want to make sure that you

Speaker A

do your best not to break it. Okay, now we have a lot more access right here to get to our O2 sensor that is located right back here up at the top. So we'll undo this electric connection, these clips,

Speaker A

just gotta open them up. All right, so we've got that undone, and now you'll be able to take your, um, the O2 sensor socket or a 20 millimeter, 22 millimeter wrench if you can get on there with that.

Speaker A

And this one has this protective coating, so you won't be able to use this standard socket. So we'll need to use something like this or a wrench to get down on there. So we go in the loosening option of a

Speaker A

counterclockwise. We broke that, um, the tightness, and now you'll be able to pull out your O2 sensor. Again, this is the upstream O2 sensor, and then you would get a new one and we put that in in the reverse order.

Speaker A

By, I think I can go back again. Foreign it up. Okay, so we've got it down there hand tight. Just go ahead and give it a little bit of a snug on there. Okay, and up now we'll run this back through,

Speaker A

snap that connector back on. This one, hook up the electrical connector here, make sure it snaps into place and lock on, and then be able to reinstall that, lock that into place. And now after that, then you're just going to

Speaker A

go ahead and put your, um, air intake line back on, connect everything back up. And so that would be how you would replace your upstream O2 sensor on a 2014 Volkswagen Tiguan with the 2.0 TSI motor. Thanks for watching Mechanic, where you

Speaker A

can be the mechanic.

Speaker A

go ahead and put your um air intake line back on connect everything back up and so that would be how you would replace your Upstream O2 sensor on a 2000 2014 Volkswagen Tiguan with the 2.0 TSI motor thanks for watching mechanic where you

Speaker A

can be the mechanic

Topics:Volkswagen Tiguanupstream O2 sensoroxygen sensor replacement2.0 TSI enginecar repairDIY mechanicsensor socketair intake removalvacuum line clipsvehicle maintenance

What tools are needed to replace the upstream O2 sensor on a 2014 Volkswagen Tiguan?

You will need a T30 driver to remove the air intake bolts, and an O2 sensor socket or a 20-22 millimeter wrench to loosen and remove the sensor.

Is it necessary to remove the air intake line to replace the O2 sensor?

While it is possible to remove the O2 sensor without removing the intake line, removing the intake line makes the process much easier and provides better access.

How do you handle the vacuum line clips during the intake removal?

You need to carefully squeeze the clips together to release the vacuum line without breaking them, as they can be fragile.
