A sign wave is the basic building block of sound.
Speaker A
The sign wave gets its name from the sinusoid function which describes a circle in two dimensions.
Speaker A
Since sound only exists on one dimension, the time dimension, the graph cannot go back on itself to create a real circle.
Speaker A
So basically, a sign wave is audio circle.
Speaker A
Just as can create a complete drawing from small dots, you can also create any sound conceivable by mixing together several sign oscillators.
Speaker A
Let's listen to the sign oscillator.
Speaker A
The graph you are looking at is an oscilloscope.
Speaker A
The Y axis represents the amplitude.
Speaker A
This is the zero point, this is the maximum and this is the minimum.
Speaker A
And in the X axis represents time.
Speaker A
The Y axis acts exactly as your speaker would.
Speaker A
When the graph is on top, your speaker is pushed forwards towards you.
Speaker A
When it's down, the speaker is pulled away from you.
Speaker A
When it's on zero, then your speaker's driver is centered on an ideal state.
Speaker A
When I play high notes,
Speaker A
more wave cycles are compressed into the view.
Speaker A
This is because high frequencies are shorter.
Speaker A
And our graph has a set time window.
Speaker A
If we play low notes, we can see that there are less cycles in our view.
Speaker A
This is because they are slower and they take more time to evolve.
Speaker A
Let's look at the sign in our frequency analyzer.
Speaker A
As you can see, the sign only has one peak and has no frequency content on any side of the spectrum.
Speaker A
This is why a sign wave is often referred as a pure tone.
Speaker A
As it is the only sound that consists of a single basic frequency.
Speaker A
This basic frequency is called the fundamental frequency.
Speaker A
If we look at other wave shapes such as the so or square.
Speaker A
Now we are looking at a so wave on an oscilloscope.
Speaker A
If we look at the frequency analysis of this sound, we can see that it has many spikes.
Speaker A
Those spikes are extra high frequencies that construct the sound timbre.
Speaker A
Those are called overtones.
Speaker A
Overtones construct each sound that we hear each day.
Speaker A
Overtones can be harmonic or non-harmonic.
Speaker A
Non-harmonic overtones result in noise or sounds with ambiguous speech.
Speaker A
While harmonic overtones support the fundamental frequency and keep its tonality intact.
Speaker A
So as you can already guess, we can make a so oscillator out of many sign oscillators.
Speaker A
The lowest frequency of the sound is the basics on which the sound is built.
Speaker A
And is called the fundamental frequency.
Speaker A
The rest of the spikes here are called overtones.
Speaker A
Harmonic overtones will always be the fundamental frequency multiplied by a whole number.
Speaker A
Let's take for example the note A 110 Hz.
Speaker A
It has a fundamental frequency of 110 Hz and its first harmonic is its fundamental frequency 110 Hz.
Speaker A
Its second harmonic would be the frequency times two, which means 220 Hz.
Speaker A
The third one will be 330 Hz.
Speaker A
Times four.
Speaker A
Times five.
Speaker A
And so on.
Speaker A
The idea behind the system is to keep our wave cycle repetitive.
Speaker A
And the only way to do that is to have the overtones start and finish at the same phase of the fundamental frequency.
Speaker A

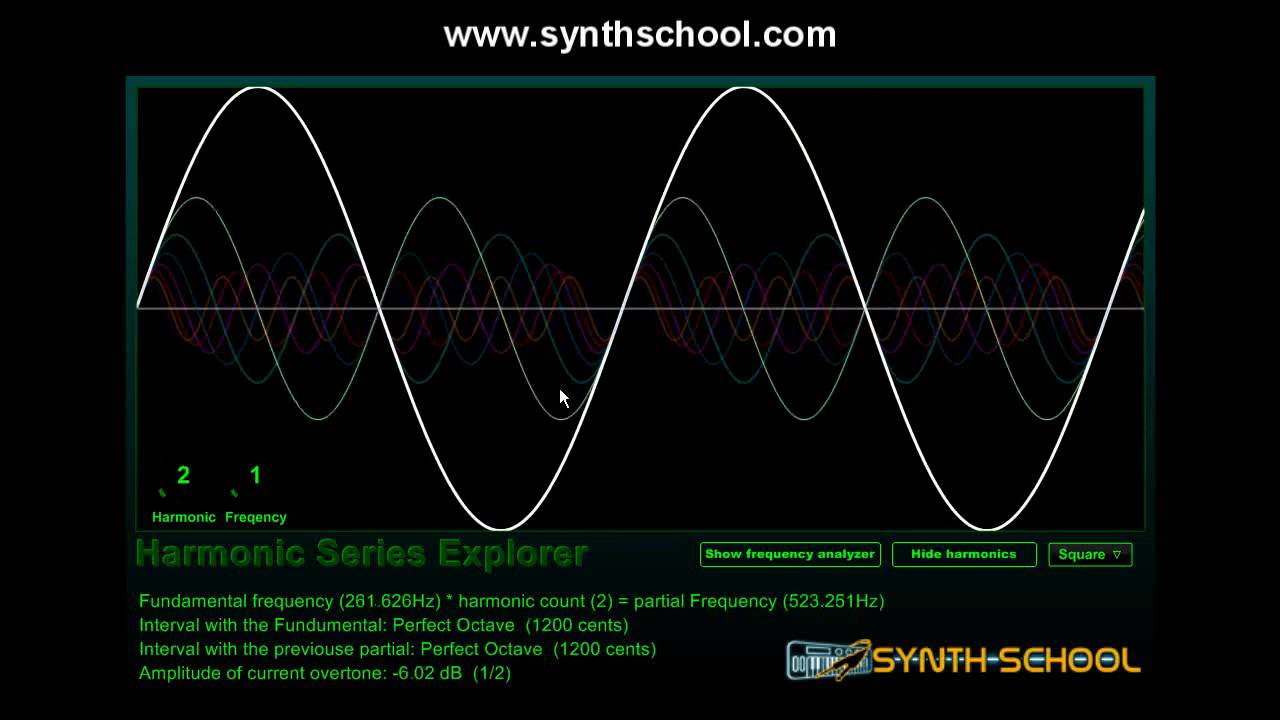

As you can see here, we have a green, blue, we have small sign waves here that represent the harmonics of the sound.
Speaker A
The first harmonic would be the fundamental frequency.
Speaker A
The second harmonic has two cycles per one cycle of the fundamental frequency.
Speaker A
And because of that, it starts and it ends at the same point.
Speaker A
And it's the same with the third harmonic, which has three cycles per one.
Speaker A
Or here we have four cycles per one, and you can actually follow it, it's pretty accurate.
Speaker A
And so on to infinity.
Speaker A
Let's listen to those harmonics.
Speaker A
Does it sound musically familiar?
Speaker A
Of course it does.
Speaker A
This is the building block of all music.
Speaker A
It occurs naturally in nature, and it exists in all human music.
Speaker A
Personally for me, it reminds an Indian flute or something like this.
Speaker A
Let's see how a so wave is constructed from many sign oscillators.
Speaker A
By adding them one by one.
Speaker A
Let's start with the fundamental frequency.
Speaker A
And now we add the second harmonic.
Speaker A
Third harmonic, as you can see, there are three slides here.
Speaker A
And it's starting to resemble a so shape.
Speaker A
We are going to add this harmonic here.
Speaker A
And I could go on forever.
Speaker A
But my CPU doesn't have enough horsepower, and 16 is enough to demonstrate the idea.
Speaker A
A so wave has all of the harmonics.
Speaker A
But not all waves have to have all of the harmonics.
Speaker A
For instance, the square does not have any even harmonics.
Speaker A
It skips the two, four, six, eight and so on of the harmonic, adding only the odd harmonics.
Speaker A
So one is the odd harmonic.
Speaker A
As you can see, two, we're not mixing inside.
Speaker A
We're skipping it.
Speaker A
Straight to three.
Speaker A
And voila, it starts to look like a square.
Speaker A
We skip the fourth.
Speaker A
We add in.
Speaker A
We skip the sixth.
Speaker A
We add the seventh.
Speaker A
And so on.
Speaker A
Let's look at the same thing on the frequency analyzer.
Speaker A
Here is a so wave.
Speaker A
This is our fundamental frequency, and now we're going to add the overtones.
Speaker A
The first one.
Speaker A
Second one we skip.
Speaker A
Third.
Speaker A
Fifth.
Speaker A
Seventh.
Speaker A
Ninth.
Speaker A
Eleventh.
Speaker A
Thirteenth.
Speaker A
Fifteenth.
Speaker A
Let's look at the relations between frequencies.
Speaker A
I've selected 220 Hz as my fundamental frequency.
Speaker A
And my next overtone will be an octave higher.
Speaker A
The fundamental frequency times two.
Speaker A
That's 440 Hz.
Speaker A
The next overtone will be a fifth higher than the second overtone.
Speaker A
Or an octave and a fifth higher than the fundamental.
Speaker A
The fourth one will be two octaves higher than the fundamental.
Speaker A
And a perfect fourth higher than the previous overtone.
Speaker A
And as you can see, as I go up the overtones,
Speaker A
the interval with the previous overtones gets smaller and smaller and smaller.
Speaker A
As I go up, it reaches microtone.
Speaker A
The recipe for making a classic so oscillator is having each overtone amplitude divided by its harmonic count.
Speaker A
So for instance, the first overtone would be on maximum volume.
Speaker A
The second one would be half the volume.
Speaker A
Third one would be third the volume, you can see it here also.
Speaker A
And so on.
Speaker A
That's it for this lesson.
Speaker A
I hope you got a little bit wiser.
Speaker A
If you want to download this device and explore the world of harmonic sound or generally learn about synthesizers and how to make great sound,
Speaker A
just visit our website www.synthschoool.com.
